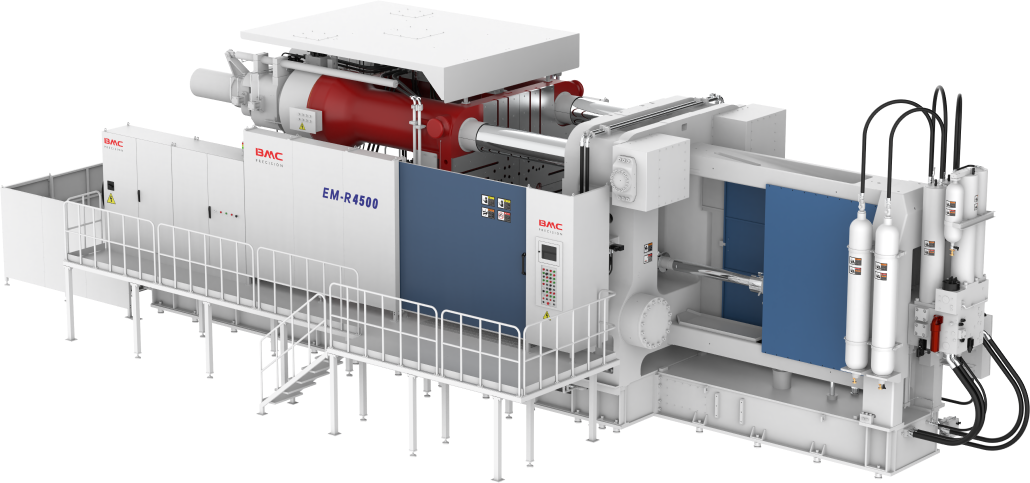

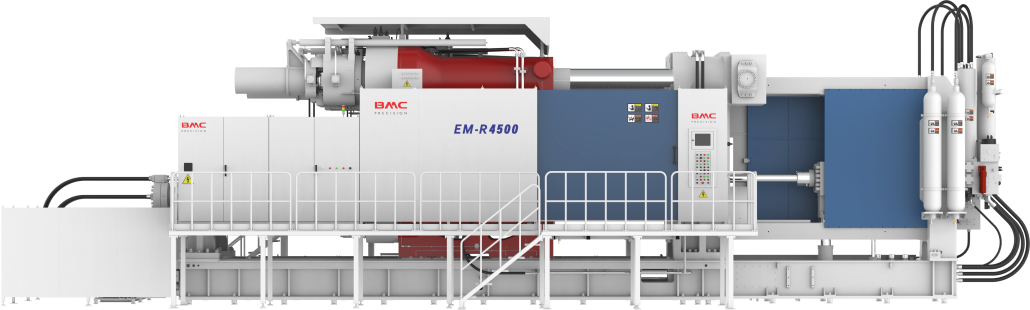

EM-R series
TWO PLATEN DCM550T-9300T
The EM-R series is a die-casting machine that integrates two platen toggle free direct press technology, closed-loop & real-time injection control technology, and intelligent production process control technology. This equipment is designed especially for more precise, larger and more complex casting parts and is thus a perfect die-casting solution.
Create a better return on your investment!

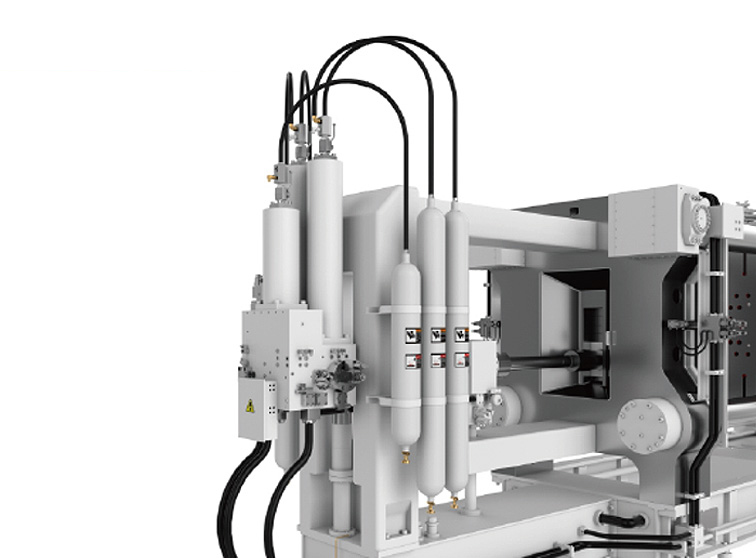

Closed-loop & Real-time Control System
-
Velocity Closed-loop
-
Pressure Closed-loop
High performance
-
Items
Data
-
Real time control scan cycle time
0.25ms
-
Velocity adjustment range
0.02~10m/s
-
Velocity adjustment stage
10 stages(with uniform acceleration function)
-
Acceleration
≥65g
-
Intensified build up stage
6 stages
-
Intensified build up time
≤ 10ms (below 1000T) ≤ 20ms (above 1000T)
-
Brake
≥45g
-
Slow velocity to high velocity position repeat accuracy
±2mm
-
Slow velocity repeat accuracy
±0.002m/s
-
High velocity repeat accuracy
±2%

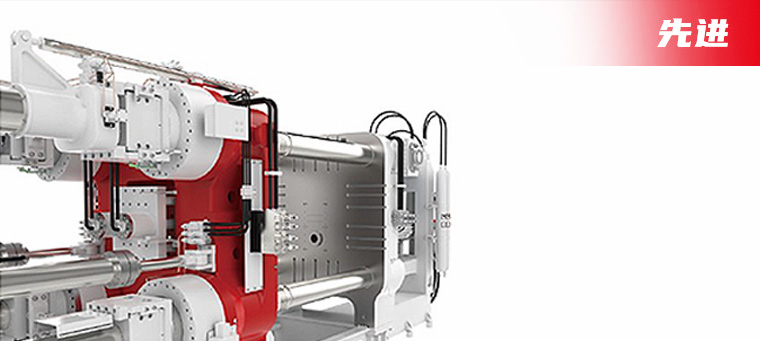

Toggle-Free Direct Press Technology
Mold thermal expansion automatic compensation function, effectively reduce casting flash, and greatly improve product quality and qualification rate.

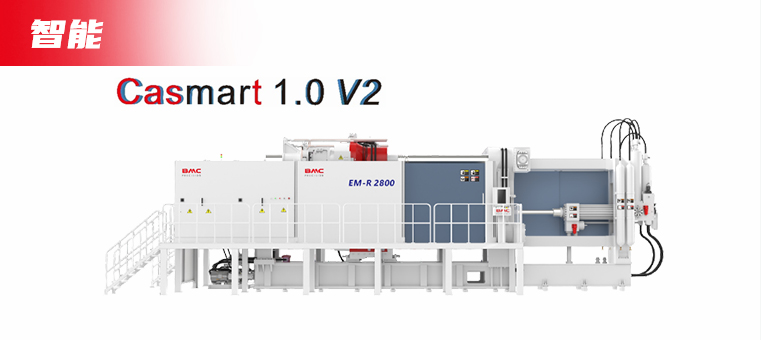

Production Process Intelligent Control
Innovative and intelligent BMC Casmart 1.0-V2 production process control technology can automatically and intelligently calculate all production process parameters based on product information and display the injection process curve to help you optimize casting parameters.
